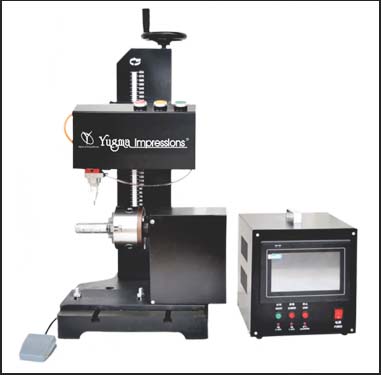

7.5 Inch Monitor CNC Rotary Dot Peen Marking Machine BM-09TCY
Product Specification
| Item number | BM-09TCY |
| Product Name | 7.5 Inch Monitor CNC Cylinder Rotary Dot Peen Metal Marking Machine |
| Usage | Metal printing machine – Stylus printer |
| Engraving surface | Cylinder rotary surface & flat curved surface |
| Controller type | 7.5 inch touch screen monitor - no need computer |
| Additional parts need | Air compressor |
| Engraving Power | Air compressor (pneumatic) & electricity |
| Electricity | AC220V±10%~50Hz AC110V±10%~50Hz |
| Energy consumption | 120W (air compressor excluded) |
| Control type | Connect computer with software |
| Engraving type | Full automatic |
| Engraving machine type | Desktop, Bench top |
| Engraving contents | Characters, numbers, symbols, graphs, logo, two dimensional barcode |
| Size of characters | Adjustable on marking software |
| Engraving depth | 0.02-2 mm (adjustable, depending on materials) |
| Engraving speed | 3-5 letters/s according to letter size (height 2mm) |
| Marking materials | Metal or nonmetals with hardness under HRC65 |
| Pneumatic pressure | 0.3-0.6 Mpa |
| Repeat precision | 0.02-0.04 mm |
| Dot peen header | Harden HRC92 (Hardness) |
| Controller | 7.5 inch touch screen monitor |
| Usage | Metal printing machine – Stylus printer |
| Graphic Format Supported | DWG, PLT, SLG, WMF, EMF, AI |
| Marking surface | flat curved surface |
| Product description | 7.5 Inch monitor with cylinder rotary device, not need additional computer to control the machine. Metal marking machine-Stylus printer. |
