We are Manufacturer, Exporter And Supplier of Dot Pin Marking Machines and our setup is situated in Aurangabad, Maharashtra, India.

Product Description

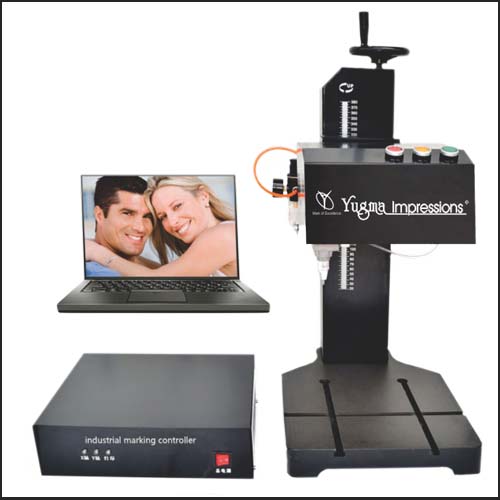

10 Years CNC Nameplate Steel Metal Pneumatic Marking Machine

Item number BM-08T
Product Name 10 Years CNC Nameplate Steel Metal Pneumatic Marking Machine
Cast Iron Base Durable over 10 years
Usage Metal printing machine – Stylus printer, dot pin header
Marking surface Flat surface & curved surface (height difference within 3mm)
Additional parts need Computer & air compressor (optional : 7.5 inch monitor don’t need computer)
Marking Power Air compressor (pneumatic) & electricity
Electricity AC220V±10%~50Hz   AC110V±10%~50Hz
Energy consumption 120W (air compressor excluded)
Control type Connect computer with software
Marking type Full-Automation(computer controlled)
Marking machine type Desktop, Benchtop
Marking contents Characters, numbers, symbols, graphs, logo, two dimensional barcode
Size of characters Adjustable on marking software
Marking depth 0.02-2 mm (adjustable, depending on materials)
Marking speed 3-5 letters / s according to letter size (height 2mm)
Marking materials Metal or nonmetals with hardness under HRC65
CNC or Not No(optional item with CNC)
Pneumatic pressure 0.3-0.6 Mpa
Repeat precision 0.02-0.04 mm
Dot peen header Harden HRC92 (Hardness)
Marking surface Flat surface & curved surface (height difference within 3mm)
Product description CNC Nameplate Steel Metal Pneumatic Marking Machine - Stylus printer. Pneumatic Marking Machine is a good choice for nameplate and metal steel factory production, especially for the metal products, an

Features:
  • Core Parts : Imported from Taiwan, Japan, USA...etc.
  •  3 Years Warranty : Main parts, not including consumable part like pin head.
  •  10 Years Durable : Cast Iron Base.
  • Best Air Valve In The World : USA MAC.
  •  Imported Luxembourg Pin Header : high tensile and durable for one whole year.
  •  Imported Taiwan Air Pressure Regulator (controller).
  •  High Precision Linear Slider HIWIN or SBC.
  • Millitary Aviation Cable
  • Industrial Load Bearing Pole.
  • Industrial Screw Rod.
  • Convenient Control Buttons : Lamp, Air control, Print.
  • Flat Surface & Curved Surface Marking.
